Products: Magnetic Compasses and Binnacles: Hansita II-WM

Product Description

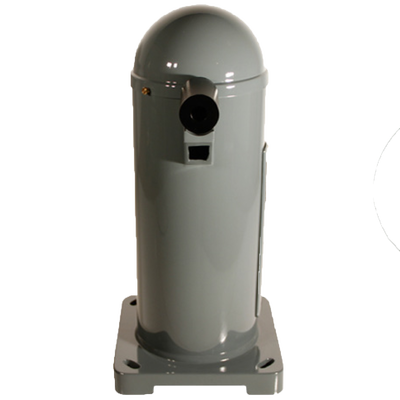

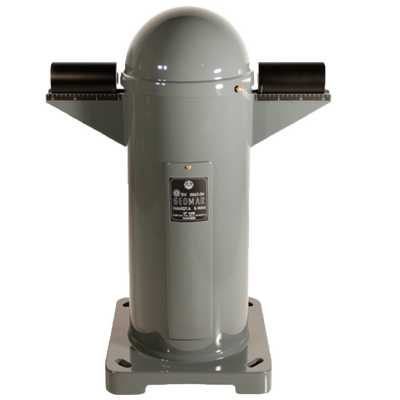

Hansita II-WM is a binnacle for sea going commercial vessels
Type approved to the European Marine Equipment Directive (MED)
Highly environment resistant
Easy installation work
Suitable for use with Transmitting Magnetic Compass equipment (TMC) to operate magnetic compass repeaters, off-course alarms, gyro back up and other outputs to navigation equipment.


Standard Scope of Supply
Reinforced fiberglass A2 type binnacle
Magnetic A class compass Consemi G-WM, 125 mm reflector card
B+C+D+K correctors
Periscope
Main and emergency illumination
Double dimmer

Options

  Azimuth device
  Canvas cover

Design features
Binnacle’s material:
Compass’ material:
Correction:
Lighting:
Glass-fiber reinforced polyester (GFRP)
Non magnetic bronze and brass
Full set of correctors B+C+D+K
Both main (220/115V-25W) and emergency (28V-25W)
Dimmer:
“Luxor” dimmer to independently control light intensity both from
the bridge and the binnacle
Compass:
Magnetic reflector compass “Consemi G-WM” with 125 mm card
diameter
Binnacle colour:
Periscope colour:
Binnacle weight :
White or navy grey. Others available
Black
Including compass, 26 kg
