Follow us in Google+Products: Magnetic Compasses and Binnacles: Hansa IV-WM Magnetic Compass Outfit
Product Description

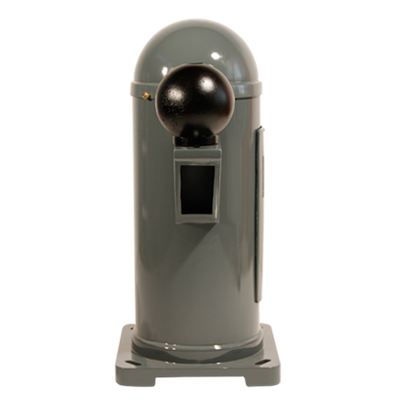

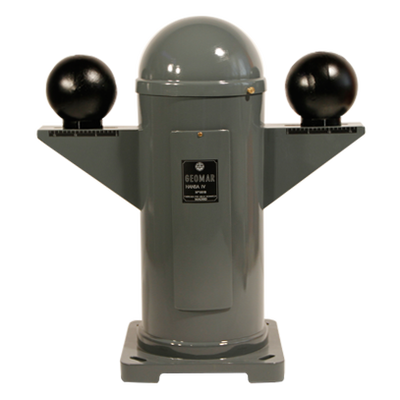

Hansa IV-WM is a binnacle for see going commercial vessels
Type approved to the European Marine Equipment Directive (MED)
Highly environment resistant
Easy installation work
Suitable for use with Transmitting Magnetic Compass equipment (TMC) to operate magnetic compass repeaters, off-course alarms, gyro back up and other outputs to navigation equipment
Standard Scope of Supply
Reinforced fiberglass A2 type binnacle.
Magnetic A class compass Mortral G-WM, 165 mm reflector card
B+C+D+K correctors
Periscope
Main and emergency illumination
Double dimmer
Options
Flinders bar
Azimuth device
Horizontal by-pass
Canvas cover
| Design Features | |
|
Binnacle’s material:
Compass’ material:
Correction:
Lighting:
|
Glass-fiber reinforced polyester (GFRP)
Non magnetic bronze and brass
Full set of correctors B+C+D+K. Flinders bar optional
Both main (220/115V-25W) and emergency (28V-25W)
|
| Dimmer: |
“Luxor” dimmer to independently control light intensity both from
the bridge and the binnacle.
|
| Compass: |

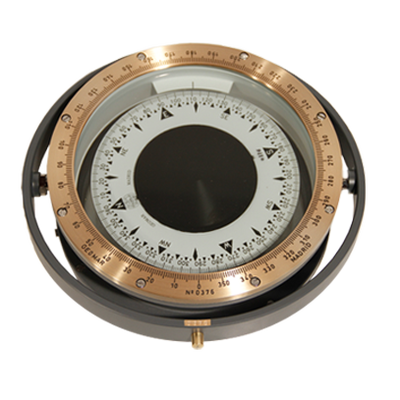

Magnetic reflector compass “Mortral G-WM” with 165 mm card
diameter
|
|
Azimuth device:
Binnacle colour:
Periscope colour:
Binnacle weight :
|
“Altral WM” reading device with mirror
Navy grey. Others available
Black
Including compass, 36 kg
|
