Product Description

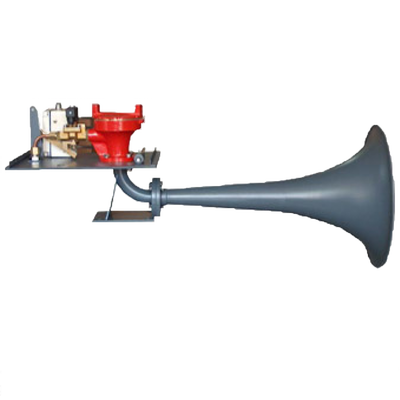

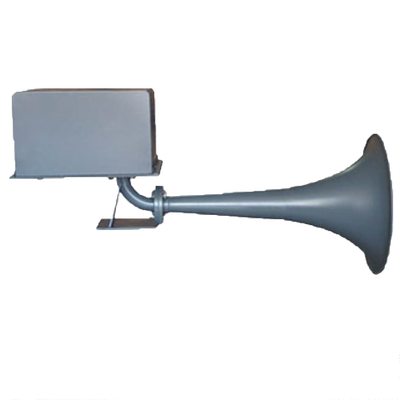

Geomar C-138 DB is an air horn ruggedly constructed to withstand the most severe sea environment using the best seawater, non-corrosive materials. It has a heating thermostatically controlled for navigation in polar areas.
Application
Suitable for vessels with lengths between 75 and 200 meters
Features
| Design features | |
|
Frequency and sound intensity:
Audible range:
Frequency:
|
According to IMO 1972 regulations
1,5 miles
160 cps
|
| Operation: |
Console push button and manual pull
Wing push buttons optional.
|
|
Best seawater, non-corrosive materials:
Air horn:
Air consumption:
Diaphragm diameter:
Hose diameter:
Heating:
Voltage:
Weight:
Signal controller:
|
Brass and stainless steel
With working pressure between 7 and 40 Kg /cm2
30 l /sec
125 mm
16 mm
24V, 220V, 200W
24V, 220V
35 kg
Audiotronic I / II (optional)
|
Certificates
Type approved by Det Norske Veritas (DNV)
