General description

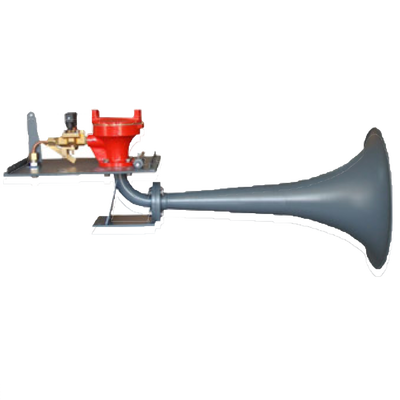

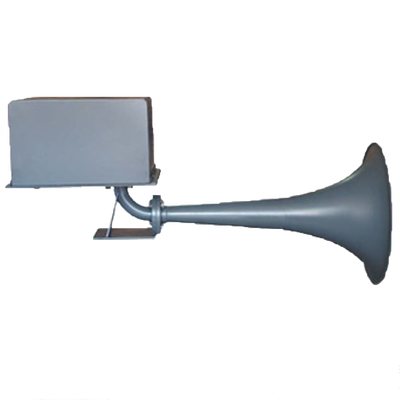

Geomar B-138-DB is an air horn ruggedly constructed to withstand the severe sea
environment using the best seawater, non-corrosive materials.
Application
Suitable for vessels with lengths between 75 and 200 meters.
Features
| Design Features | |
|
Frequency and sound intensity:
Audible range:
Frequency:
|
According to IMO 1972 regulations
1,5 miles
160 cps
|
| Operation: |
Console push button and manual pull
Wing push buttons optional
|
| Automatic generation: |
Of sound signals by the signal controller
Audiotronic I / II.
|
| Best seawater, non-corrosive materials: | Brass and stainless steel |
|
Air horn:
Air consumption:
Diaphragm diameter:
Hose diameter:
Voltage:
Weight:
|
With working pressure between 7 and 40 Kg /cm2
30 l /sec
125 mm
16 mm
24V, 220V
33 kg
|
Certificates
Type approved by Det Norske Veritas (DNV)
