Follow us in Google+Products: Fog Horns: Geomar A/B-130 DB Air Fog Horn. 20-75m
General description

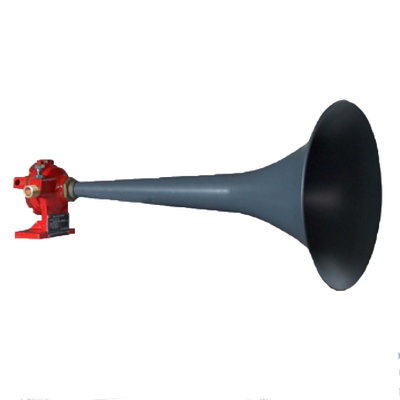

Geomar A/B-130 DB is an air horn ruggedly constructed to withstand the severe sea environment using the best seawater, non-corrosive materials.
Application
Suitable for vessels with lengths between 20 and 75 meters.
Suitable for vessel working in explosive atmospheres.
Features
| Design features | |
| Frequency and sound intensity: | According to IMO 1972 regulations |
|
Audible range:
Frequency:
|
1 mile
260 cps
|
| Operation: |

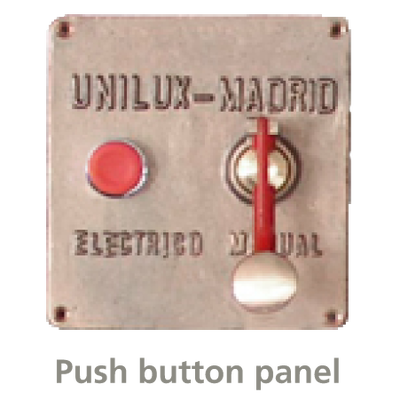

Push button for electric remote operation as well
as manual operation integrated in a special control
panel for console mounting.
|
|
Automatic generation of sound signals by the signal controller Audiotronic I.
|
| Best seawater, non-corrosive materials: | Brass and stainless steel |
| Air filter optional | |
| Air horn: | With working pressure between 7 and 40 Kg /cm2 |
|
Air consumption:
Diaphragm diameter:
Hose diameter:
Voltage:
Weight:
|
10 l /sec
75 mm
16 mm
24V, 220V
4,5 kg
|
Certificates
Spanish Maritime Directorate
